Regarding the compatibility of HAKKO FM-2032 with stations, contact your local dealer or distributor.
| FM-2027 | FM-2028 | FM-2022 | FM-2023 | FM-2024 | FM-2026 | FM-2029 | FM-2030 | FM-2031 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FM-202 | ◎ | T7*1 | △2 | T7*1 | ○ | T8 | ○ | T9 | ○ | N1 | ○ | T13 | × | – | × | – | × | – |
| FM-203 | ◎ | T12 T15*2 | △2 | T12 T15*2 | ○ | T8 T16*2 | ○ | T9 | ○ | N1 N3*2 | ○ | T13 T17*2 | × | – | × | – | × | – |
| FM-204 | ○ | T12 T15*2 | △2 | T12 T15*2 | × | – | × | – | ◎ | N1 N3*2 | ○ | T13 T17*2 | × | – | × | – | × | – |
| FM-206 | ◎ | T12 T15*2 | △2 | T12 | ○ | T8 T16*2 | ○ | T9 | ◎ | N1 N3*2 | ○ | T13 T17*2 | ◎ | N4 | ○ | T22 | ○ | T22 |
| FX-950 | △1 | T12 T15*3 | ◎ | T12 T15*3 | × | – | × | – | × | – | ○ | T13 T17*3 | × | – | × | – | × | – |
| FX-951 | △1 | T12 T15*2 | ◎ | T12 T15*2 | × | – | × | – | × | – | ○ | T13 T17*2 | × | – | × | – | × | – |
| FX-952 | △1 | T12 T15*3 | ◎ | T12 T15*3 | × | – | × | – | × | – | ○ | T13 T17*3 | × | – | × | – | × | – |
| ◎ : | Standard product |
| ○ : | Applicable (Option) |
| × : | Not applicable |
| △1 : | Applicable. However, the LED on the FM-2027 stays lit. |
| △2 : | Applicable. However, it is impossibe to see the operation status with the LED on the handpiece since the FM-2028 is not equipped with LED functionality. |
| *1 : | It is also possible to use T12, but the parameters must be changed since temperature correction using a barcode is not available in this combination. |
| *2 : | For North America & EU |
| *3 : | For EU |

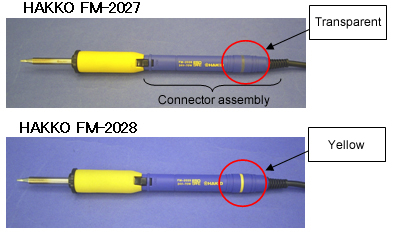

Differences in the handpiece between HAKKO FM-2027 and HAKKO FM-2028
1. Differences in appearance
The color of the part incorporated in the connector assembly differs from each other.
2. Differences in function
The HAKKO FM-2027 has a function that indicates the operating status by lighting the LED incorporated in the upper part of the connector assembly (transparent part) in red.
The HAKKO FM-2028 does not have this LED.
To use the functions of the HAKKO FM-2027, it must be connected with the HAKKO FM-202, HAKKO FM-203, HAKKO FM-204, HAKKO FM-205 or HAKKO FM-206.
The HAKKO FM-2027 can be also used together with the HAKKO FX-951 and HAKKO FX-952, but in this case the LED stays lit irrespective of operating status.

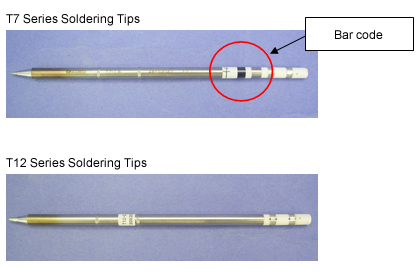

Differences between T7 Series tips and T12 Series tips
1. Differences in appearance
The color of the part incorporated in the connector assembly differs from each other.
2. Differences in usage
The T7 Series tips are the soldering tips for the FM-202. The barcode used for the temperature correction is taped on the T7 Series tips. When this barcode is passed through the process gate of the HAKKO FM-202, the tip temperature is corrected by ±10°C. T12 Series tips do not have a barcode and therefore cannot be used with the temperature correction function of the HAKKO FM-202.
When T12 Series tips are used with HAKKO FM-202
HAKKO FM-202 will not operate normally unless it reads the barcode on the tip. For this reason, the T7 Series tips, which have the barcode, are usually used with the HAKKO FM-202. However, the T12 Series tips can also be used with the HAKKO FM-202 by turning the temperature correction function OFF and using the offset function.
– Turning off the barcode-driven tip temperature correction function and using the offset function –
A. Turn off the barcode-driven tip temperature correction function.
- Insert the card.
- Press the “#” and “▼” buttons simultaneously, and turn on the power to display the following:
“t” denotes the barcode correction value. “0” denotes the offset correction value. - Press ” ▼ ” or ” ▲ ” and select ” 5 0 “.
- Press ” * ” several times until the station returns to normal operation mode.
B. Input the offset value for the tip temperature.
- Measure the tip temperature.
- Check the differences between the set temperature and the tip temperature, and then input an offset value.
