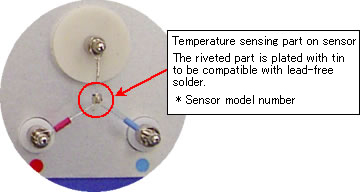

For a precise temperature measurement, place the tip on the measuring point on the sensor horizontally.

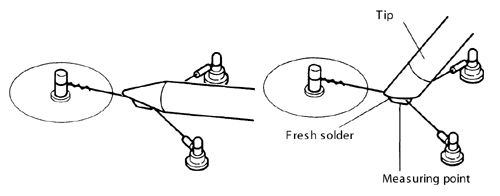

For the B type, I type and D type, if a tip has standard solder plating, place the center of the solder plated part to the measuring point. | For the BC type and C type, if only the tip face is solder plated, place the plated face to the measuring point as shown in the illustration. |
| |
