This list provides details regarding which N2 soldering irons can be used with which soldering stations. It is possible to build your own N2 system using your existing N2-compatible soldering station by purchasing an N2 soldering iron and other required equipment.

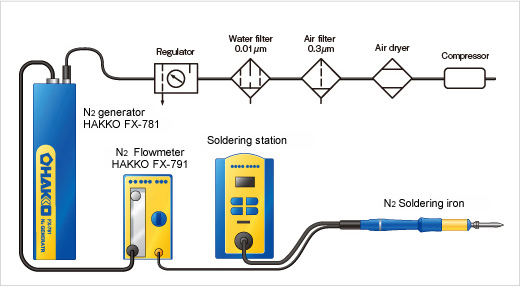

Required equipments for one soldering iron | |
|---|---|
| N2 generator | HAKKO FX-780 ; Small-capacity type (1 pc), or HAKKO FX-781 ; Large-capacityi type (1 pc) |
| N2 Flowmeter | HAKKO FX-791 (1 pc) |
| Other equipments | Regulator, Water filter, Air filter, Air dryer, Compressor |
| Required equipments for two soldering irons | |
|---|---|
| N2 generator | HAKKO FX-781; Large-capacityi type (1 pc) |
| N2 Flowmeter | HAKKO FX-791 (2 pcs) |
| Other equipments | Regulator, Water filter, Air filter, Air dryer, Compressor |
| HAKKO FX-781 large-capacity type accepts 2 soldering irons and capable of creating high concentration and large flow of N2 gas. For high concentration and large flow of N2 gas like auto soldering unit |
|---|
| Soldering station | Soldering tip / Nozzle assembly | N2 soldering iron |
|---|---|---|
| Single iron HAKKO FX-888(Discontinued) HAKKO FX-888D HAKKO FR-701 Compatible soldering stations Double iron* HAKKO FX889 HAKKO FR-702 Compatible soldering stations | Soldering tip T18 series | HAKKO FX8802 No. FX8802-01  * Included standard tip(T18-B)and the applicable nozzle assembly A (B3662). Other tip shapes are available as optional parts. |
Nozzle assembly | ||
| Single iron HAKKO FX838 Compatible soldering stations | Soldering tip T20 series | HAKKO FX-8302 No. FX8302-01  * Tip and nozzle assembly are optional parts. |
Nozzle assembly | ||
| Single iron HAKKO FN-1010 Compatible soldering stations | Soldering tip T36 series | HAKKO FN1102 No. FN1102-81  * Tip and nozzle assembly are optional parts. |
Nozzle assembly | ||
| Single iron HAKKO FX-801 Compatible soldering stations | Soldering tip T33 series：Regular Type  T33 series：Slim Type  | HAKKO FX-8003 No. FX8003-81  * Tip and nozzle assembly are optional parts. |
Nozzle assembly  | ||
| Single iron HAKKO FX-950 HAKKO FX-951 HAKKO FM-204 HAKKO FM-205 Double iron* HAKKO FX-952 HAKKO FM-203 Triple iron* HAKKO FM-206 Compatible soldering stations | Soldering tip T13 series | HAKKO FM-2026 No. FM2026-03 No. FM2026-05
* Tip and nozzle assembly are optional parts. |
Nozzle assembly | ||
| Triple iron* HAKKO FM-206 Compatible soldering stations | Soldering tip T22 series | HAKKO FM-2031 No.FM2031-01 No.FM2031-02  * Tip and nozzle assembly are optional parts. |
Nozzle assambly | ||
| Single iron HAKKO 938(Discontinued) Compatible soldering stations | Soldering tip T14 series | HAKKO 957 (Discontinued) No. 957-01  * Tip and nozzle assembly are optional parts. |
Nozzle assambly | ||
| Single iron HAKKO 936(Discontinued) HAKKO 937(Discontinued) HAKKO 701 Double iron* HAKKO 928 Compatible soldering stations | Soldering tip T4 series | HAKKO 953 No. 953-01  * Included standard tip (T4-B) and the applicable nozzle assembly A (B2670). |
| Nozzle assembly |
* Two N2 soldering irons are available at the same time. One HAKKO FX-780 and one HAKKO FX-791 are required for each.
N2 soldering iron and soldering station should be purchased separately; the bundled package is not available.
