Soldering process time can be saved by preheating effect of N2 system. Look at the following graphs showing the soldering time difference with / without nitrogen gas in case of HAKKO FX951 and HAKKO FX838.
| Thermally-controlled high-power compact type (Digital) as a standard soldering iron for any soldering situation |
| High power 150W soldering station suitable for soldering from large to fine components (Digital)for components requiring a large amount of heat |

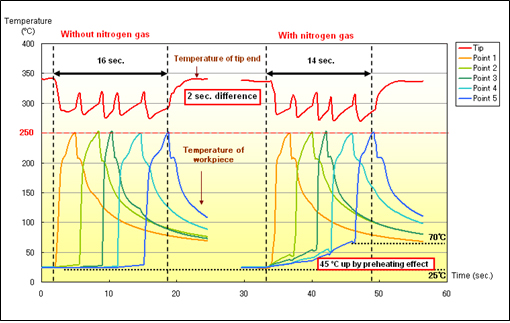

HAKKO FX951
| Test method: | Measure the time until the workpiece reached to 250℃ at 5-points; setting temperature is 320℃ with nitrogen gas and 340 ℃ without nitrogen gas.: |
| Board | Paper phenol copper, single-sided |
| Component | Connector |
| Tip shape | T12-D24 without nitrogen gas T13-D24 with nitrogen gas |
| Setting temperature | 340℃ without nitrogen gas 320℃ with nitrogen gas |
| Solder | Lead-free solder (Sn-3Ag-0.5Cu) ø0.5 |
*Please refer to above values, which vary depending on soldering condition.

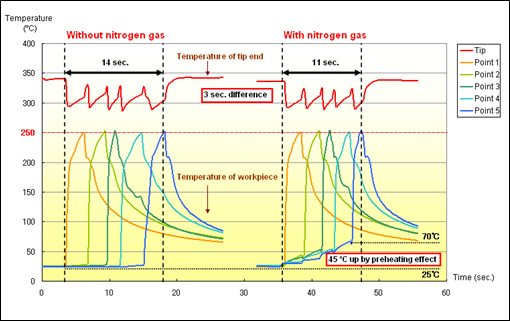

HAKKO FX838
| Test method: | Measure the time until the workpiece reached to 250℃ at 5-points; setting temperature is 320℃ with nitrogen gas and 340ºC without nitrogen gas. |
| Board | Paper phenol copper, single-sided |
| Component | Connector |
| Tip shape | T20-D24 with / without nitrogen gas |
| Setting temperature | 340℃ without nitrogen gas 320℃ with nitrogen gas |
| Solder | Lead-free solder (Sn-3Ag-0.5Cu) ø0.5 |
*Please refer to above values, which vary depending on soldering condition.
Comment Soldering time with nitrogen gas can be saved by preheating effect as the above test results. Preheating the workpiece enhances the solder flow so that the solderbility will improve.
